Integral water repellents are polymer based chemical admixtures added to Concrete Masonry units (CMU) during the manufacturing process. The water repellent is incorporated into the concrete mix at the plant to ensure that each block has water repellent distributed throughout the concrete matrix.
Untreated masonry units readily absorb water through a process called capillary suction or wicking action. RainBloc anti-wicking action ensures that even if rainwater penetrates past the exterior face of the wall, RainBloc system water repellent properties minimize the amount of water that is absorbed into the concrete, causing any water inside the wall to flow to properly designed flashing and weep holes.
*Integral water repellents do not change the appearance of the units.
Will RainBloc prevent any moisture from entering a masonry building?
RainBloc is typically used in single-wythe masonry construction for additional protection to water ingress. Single-wythe masonry walls can provide the performance of cavity wall construction in a cost-effective manner.
RainBloc is not a replacement for proper single-wythe wall design and construction. A complete water repellent system emphasizes proper masonry design, details and implementation. Use of the RainBloc system provides an effective barrier to water intrusion and water wicking into CMU by allowing any intruded moisture to fall down the interior of the cores and exit at the flashing weeps.
However, even with the additional protection, designers of masonry walls must still expect and prepare for moisture to penetrate into the walls through defects, cracks or other means and incorporate water collection and draining details into the design. Proper flashing, weeps and movement joints designed and located appropriately to control cracking are essential. Of course it is also important for the mason contractor to follow the design specifications and drawings and apply good construction practices to their work.
Concrete Masonry Structure Exposed to Wind-Driven Rain
Untreated Concrete Masonry Unit
Moisture can penetrate through concrete surface
Untreated concrete matrix has excess voids that moisture can penetrate into
Wicking action pulls moisture through excess coils and capillaries deeper into the concrete
RainBloc Treated Concrete Masonry Unit
Water repellent blocks moisture from entering at the surface
High quality concrete matrix reduces voids that moisture can penetrate into
Anti-wicking action reduces water movement in voids and capillaries
Can a post applied sealer or water repellent be applied to RainBloc treated masonry?
Yes, there are no incompatibilities between RainBloc and post applied sealers which are often used to provide additional protection in a “belt and suspenders” approach.
Topical (surface) treatments are applied to the weather exposed side of the wall after the wall is in service.
Can paint be applied to RainBloc treated masonry?
RainBloc typically does not change the “paintability” characteristics of CMU, and therefore if untreated masonry units can be painted, the same will apply to RainBloc treated units. Latex, acrylic latex, cementitious coatings and waterborne epoxies may all be used. Note that oil based paints (alkyls) are not recommended for any exterior applications and should be carefully tested before application in any masonry construction.
Is there a RainBloc treatment for mortar?
Yes, RainBloc for Mortar is specifically designed for mortar applications, and contains additives to improve the workability and water repellency of the mortar. RainBloc for Mortar does not affect the bond strength between the CMU and the mortar.
Can RainBloc for CMU and RainBloc for Mortar be interchanged with each other?
No, their formulations are different and they cannot be interchanged.
Can an accelerator be added to RainBloc for Mortar if needed during colder weather?
Non-chloride accelerator integral admixtures may be used during winter months when faster set times are desired. Chloride accelerators are not recommended, as they can react with steel reinforcement and cause corrosion of the steel.
To use an accelerator admixture, simply replace a portion of the mix water with the recommended dosage rate of non-chloride accelerator.
RainBloc certified producers go through a rigorous certification process to ensure that performance of their CMU conforms to RainBloc standards for physical properties and water repellency. Certification must be renewed each year to ensure continued compliance.
Is Masonry treated with RainBloc breathable?
RainBloc is not impervious to moisture and it does not form a film on the masonry surface. RainBloc is not a vapor barrier, and the masonry units remain breathable.
What is the life expectancy of RainBloc?
RainBloc is designed to perform for the life of the masonry building.
Light Color Pavers and the Urban Heat Island Effect.
For hardscape owners and designers color is a very important consideration for aesthetics and function, but heres another factor: color can also impact sustainability. Choosing lighter colors can help mitigate the urban heat island effect.
Urban Heat Islands
Heat islands can result in cities when built structures and paved surfaces radiate energy from the sun to a greater extend than farmland or natural areas. In this way, cities create their own microclimates that can be up to 7° F (4° C) warmer than the surroundings.
Some examples of how heat islands negatively impact our environment include more air conditioning use, increased air pollution and green house gas emissions from power plants meeting air conditioning energy demands, and lower human health and wellbeing from excessive heat.
Landscape architects can play a role in cooling cities by specifying increased tree and vegetation cover, adding living or green roofs to structures, and selecting light color surfaces also known as cool pavements.
Research was done in New York City which found that planting trees and vegetation would be greatly beneficial to cool surfaces. However, they encountered a common urban problem - in many New York City neighborhoods there is no space.
Many large cities just don’t have the space required to plant enough new trees and greenery for an effective heat island reduction strategy.
Therefore, the most attainable approach is often to redevelop the large areas of dark, paved surfaces with lighter surface materials.
LEED® Credits for Heat Island Reduction
Heat Island Reduction - Non-Roof: LEED v4.1
LEED points can be awarded for paving materials with an initial solar reflectance (SR) value of at least 0.33.
The Solar Reflectance Index (SRI) is a criterion used by US Green Building Council (USGBC) that measures values of sunlight and radiation bouncing from built surfaces.
SRI is used to indicate how hot a material is likely to become when its surface comes into contact with solar radiation. On a scale of 0 to 100, standard black is 0, and standard white is 100. According to this scale, testing indicates that absorbent materials have lower numbers while reflective materials have higher numbers.
Applying this to the hardscape environment, it follows that dark pavements have low SRI values, whereas light pavements typically have higher SRI values.
In other words, light colored surfaces absorb less heat and make the immediate area more comfortable – think playgrounds or pools where bathers have bare feet. Lighter surfaces also reduce the need for nighttime lighting and make areas safer.
Combining light colors with permeable pavers can provide even more cooling benefits because permeable interlocking concrete pavers (PICP) are designed and constructed to lower surface temperatures through evaporative cooling as well. The Interlocking Concrete Paver Institute (ICPI) has many useful resources for designers at www.icpi.org.
Light Color Paver Protection
New surface treatments from ACM Chemistries protect paver surfaces from fading and stains. Lighter colors no longer have to appear washed out or marred by food or dirt stains. Colors and patterns stay vibrant and stains and dirt can be easily removed.
For more information on surface treatments, check out https://www.acmchem.com/dry-cast-paver-surface-treatments/
One of the more recent developments in dry cast or zero slump concrete paver production is “face mix”. The difference between face mix and conventional thru-mix pavers is that thru-mix paver mix design and color is the same throughout, whereas with face mix pavers there is a pigmented surface layer with a finer aggregate blend. Face mix pavers concentrate expensive pigment, white cement and finer aggregate in a surface layer where they have the most impact. The base contains larger aggregates for higher compressive and flexural strength, and improved durability. This method is well established in the US and has been used in Europe for decades.
In the picture we see examples of face mix pavers with concentrated color on the surface layer.
Face Mix Analogy
How are Dry Cast Concrete Pavers Made?
Most traditional dry cast or zero slump pavers will follow the steps below. Bear in mind that producers are coming up with new and interesting production methods and paver finishes every day!
Mixing raw materials until a homogenous mix is obtained
Feeding mix into a mold
Compression into mold
Inline surface treatment (if applicable)
Dry cast or zero slump concrete holds its shape immediately after a mold is removed, similar to packing sea sand into a bucket (mold) to make a sand castle on your beach vacation.
In dry cast concrete production the raw materials are fed into a mixer which combines them until the mix is homogenous. The mixing is important to get the cementitious materials and water in contact so that a chemical reaction called cement hydration can occur. During the hydration reaction, cement and water interact to form cement paste which hardens and becomes the “glue” that holds the aggregates together.
Dry cast paver production is a highly automated process. The business model of dry cast manufactured concrete products depends on highly efficient, mass production of concrete units that are also efficient to install: at a minimum concrete paver units must be sufficiently strong, dimensionally correct and dimensionally stable when they are installed.
Large, sophisticated plants can cost millions of dollars with new options for molds and finishes becoming available every year.
Dry cast concrete units are mixed and molded into shape in minutes. The freshly compacted units are able to hold their shape immediately after mold is removed including during transportation to the curing station, which is often a kiln. A kiln is a controlled environment where temperature and humidity are optimized to maximize cement hydration, strength gain and color development by the concrete. Dry cast concrete must be cured, usually for at least a few days, so that it can gain sufficient strength to withstand handling, installation, traffic loads and weathering over time.
Inline surface treatments are spray applied to the paver surface before the units are cured, and are bonded to the paver surface during curing. Inline treatments are used to enrich color and protect paver surfaces from staining and fading.
For comparison purposes, see the dry cast vs wet cast production and output summaries below:
Example of dry cast step units and segmental retaining wall
Example of wet cast step units and segmental retaining wall
Concrete Pavers - a Brief Explainer
Concrete pavers are made out of … concrete. Sounds obvious, but there are actually at least two different types of concrete used to make pavers and slabs – dry cast (zero slump) and wet cast concrete. Dry cast concrete is the most common, so lets deal with that first.
The word “concrete” comes from the Latin concretus which means to grow together. This is appropriate because the magic of concrete is that it starts off as loose solid materials, when water is added, the water and cement become a paste that binds the aggregates into a formable mass which fills the shape of the container that it is in. The cement and water chemically react, harden and strongly bind the aggregates together – but this time in the exact shape that we want.
Fundamentally concrete consists of aggregates (sand and stone), cementitious materials and water.
Aggregates are the largest component, typically around 70% by volume. This means that aggregates have a big impact on concrete performance. Because aggregates are heavy, they are usually a locally sourced raw material. Many parts of North America have high quality natural aggregates like limestone and granite. Other areas, Florida for example, have less optimal choices.
In modern times, Portland cement is often supplemented with pozzolans which also fall into the category of cementitious materials. Cementitious materials include regular grey Portland cement, blended cements and pozzolanic materials such as slag cement and fly ash.
Slag cement and fly ash are made from waste products from steel manufacturing and coal burning industries. Pozzolans used to be cheaper than Portland cement, but this is no longer always the case. LEED and other environmental credits can be obtained when recycled pozzolanic materials are substituted for Portland cement.
How does cement work?
Cement hydration is a chemical reaction where cementitious materials and water interact to form a new compound that sets up, hardens and gains strength over time.
Most concrete producers today use a combination of cement and pozzolans. Using combinations of materials is often a win-win-win as it improves concrete performance while lowering cost, and is good for the environment.
In the past 50 years, as concrete has improved performance and decorative appeal, admixtures and pigments have become routine ingredients in the mix
Dry Cast Concrete paver proportions:
Introduction to Dry Cast Concrete Pavers
We tend to think of public transportation as a modern invention – but the Romans used segmented paving stones for public highways that sped troops, trade goods, tax collectors and administrators that ran and funded the empire.
Roman roads were paved with locally available stone materials, but the Romans knew and applied sound, common engineering practices:
A bedding layer of cementitious materials
Several layers of graded rubble topped with paving stones to ensure mechanical durability and proper drainage
Today, 2500 years later, we still follow the same principles.
In modern times, concrete pavers took off as a building material in Europe after World War II.
Rebuilding efforts after World War II faced major shortages of building materials. German and Dutch road designers and contractors were forced to find replacements for clay brick which was needed for houses They developed cost effective, uniform size concrete-based pavers made from readily available materials. The new concrete pavers were tolerant of unstable sub-base and traffic loads, and could be installed by relatively unskilled labor.
In the 1960s a German Engineer Fritz von Langsdorff licensed a shaped interlocking concrete paver (ICP) and developed shapes and colors that tremendously increased design choices
Other German manufacturers followed suit with improved manufacturing and installation methods
Interlocking concrete paver advantages included dimensional consistency, pavement strength and stability, and moisture tolerance. Designers also had access to shapes, colors and textures not available in concrete or clay brick.
In the 1970s the interlocking paver concept was imported into North America, starting in Canada and working south into the US.
Over 50 years many innovations have been introduced, including
Paver shapes and patterns
Green technology permeable pavers
Paver color enrichment
Number of paver sq. ft. per person
Efflorescence - What is it and what can I do about it?
What is Efflorescence?
Efflorescence in concrete units is usually observed as a white deposit on the surface. This deposit can occur as a slight haze up to a crusty layer. Efflorescence is not a structural problem, it does not affect concrete strength or durability. But it is unsightly and lowers the perceived value of the concrete.
Efflorescence is usually composed of salts that are deposited on a concrete surface. It’s worth noting that any concrete product that contains cement has the potential to produce efflorescence. There are four factors that combine to produce efflorescence, and they can occur during production, or once the units are installed on the jobsite. In this article, we will focus on what concrete producers can do to limit efflorescence.
The Four Factors
A source of soluble salts - Portland Cement
Sufficient water to dissolve the salts
Path for the salt solution to migrate to the surface
Driving force to move the salt solution through the pathway
1. A Source of Soluble Salts
As you know, there’s a lot of chemistry involved in concrete, so we have to get into some chemical reactions to understand what’s going on. When water is added to Portland cement in the mixer, a chemical reaction called hydration occurs. Cement hydration is what causes concrete to harden and gain strength, so it’s very important we understand hydration and maximize it.
The hydration reaction between cement and water forms calcium silicate hydrate (CSH) or “good” gel. This is the glue that hardens and holds concrete together. Unfortunately, the reaction is not very efficient, and a by-product called calcium hydroxide, a “bad” gel, is also formed.
One way to limit calcium hydroxide is to use pozzolans such as fly ash or slag to replace some of the cement. Fly ash and slag are able to react with calcium hydroxide, and this reaction produces more CSH gel, which is what we want. Efflorescence can also result from other soluble salts, called alkalies, usually found in the aggregates.

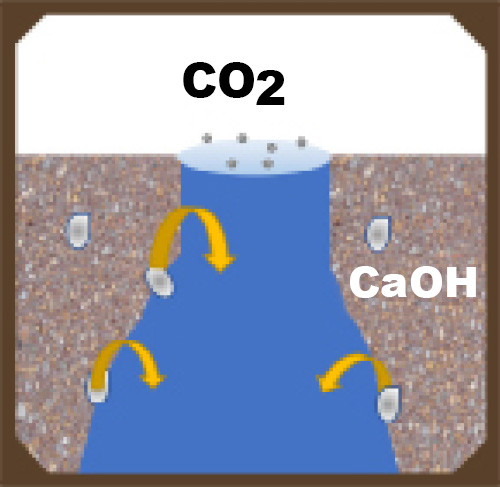

How Efflorescence Happens
2. Sufficient Water to Dissolve the Salts
During mixing: It is very important for concrete strength and durability that there is sufficient water available during mixing to hydrate the cement particles properly. Therefore, maximizing water during mixing is highly desirable. Adding as much water as possible short of pulling, picking or slumping during mixing will lead to products with higher strength and lower absorption.
After mixing: Concern over excessive water in the units comes into play after mixing, when the concrete products reach the curing stage - in the kiln or out in the yard.
Once the units are in the yard, rain and condensation can penetrate into the units, creating excess moisture conditions. Units that are exposed to repeated cycles of wetting and drying, such as during a wet spring or fall, may have increased potential for efflorescence.
3. Pathways for Salt Migration
All manufactured concrete products have a network of interconnected voids. Connected voids serve as pathways for moisture migration into and out of the concrete unit. Voids can be minimized but not eliminated. Even if you have the best mix design, materials, equipment and compaction possible, there will still be voids and pathways for salt solutions to migrate to the surface.
These pathways can be reduced by making the concrete more dense, and thus less able to absorb water. Admixtures, including water repellents and densifiers, can aid in limiting water penetration.
4. Driving Forces to Move the Salt Solution
When two things occur in different conditions (for example one hot and one cold), the environment will try to find balance between the two situations, and will react to reach the middle or equilibrium. This is a driving force. Driving forces will try to balance humidity and temperature in a concrete unit with ambient conditions. This may cause moisture in the unit that contains the calcium hydroxide salt solution to move to the surface of the concrete.
During curing and storage of concrete units, many common practices can cause a driving force to occur. These include:
Exposing units to differences in humidity and temperature between the units and their environment. For example, kilns with very high humidity will cause units to absorb excess moisture.
When units are moved from a heated kiln environment to a cold yard without allowing the units time for their internal temperature to lower and match that of the outside environment.
Factors that create driving forces that can affect concrete products
What producers can do to help reduce driving forces and limit efflorescence
Units made too cold: concrete internal temperatures below 50° F (10° C) that may occur when kilns are not heated or not full.
Reduce pozzolan use and consider using an accelerator admixture to speed hydration.
Units made too hot: Concrete temperatures above 90° F (30° C). Hot materials drive out water and the mix does not compact well, leading to more voids.
Lower the temperature of the concrete, use cold water or retarding admixture.
Very high humidity in the kiln. For example, water dripping from the ceiling or racks, may be a sign of too high humidity.
Monitor and control humidity levels in the kiln.
Moving products from kiln to yard too quickly. For example, placing steaming hot units outside in cooler weather.
Open and vent the kiln to allow temperature and humidity to come closer to ambient conditions. Allow units time to adjust to ambient temperature before moving into the yard.
In the yard, under certain conditions, evaporation from unit surfaces leads to a difference in moisture between the surface and the interior of a unit. For example, evaporation will increase in sunny, windy conditions.
Use topsheets on pallets to limit evaporation.
Cube efflorescence: Typically appears as streaks, or a ring or halo on the top layer of the cube. Direct sunlight on stretch-wrapped cubes may create a “greenhouse effect”, when trapped warm air and water vapor rise in the cube, and moisture condenses on the interior of the plastic sheeting. Water then pools on the top layer of the CMU or blotches in areas where water is slow to evaporate. Repeated wetting and drying of the top layer raises the potential for efflorescence.
Replace stretch wrap with topsheets that allow excess moisture to escape.
